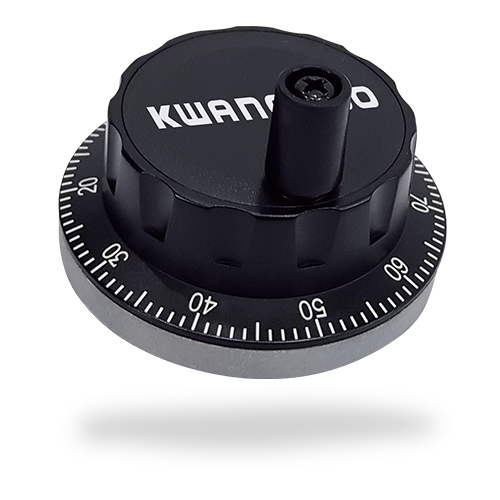

RIM 60 Series

Out Diameter Ø60mm Handle type INCREMENTAL



  • Long life
  • High reliability
  • Customized logo can be available
  • NC Machine
  • NC Millimg machine
  • Industrial use

Features

NC machine tools, industrial

Realization of high reliability

Custom logo can be attached

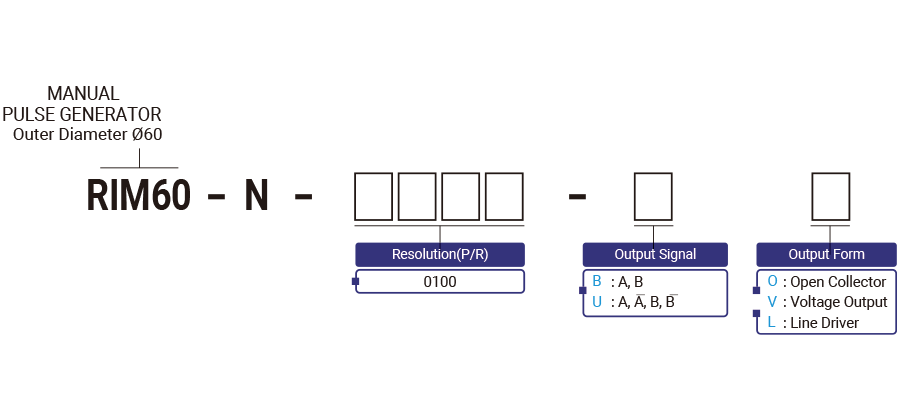

Model

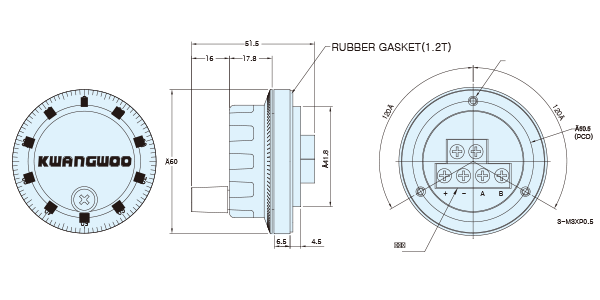

External Dimension

Output Circuit

Open Collector

Voltage Output

Line Driver

Specification

Electrical Spec

Output type Open Collector Voltage Output Line Driver
Power Supply DC+5[V]~+15[V] Ripplep-p:less than 5% DC+5[V]~+15[V] Ripplep-p:less than 5% DC+5[V] Ripplep-p:less than 5%
Consuming Current
(In case of no load)		 70mA Max 70mA Max 150mA Max
Maximum Response Frequency 5KHz MAX 5KHz MAX 5KHz MAX
Output voltage Less than VL 0.5[V]/More than VH 10[V] Less than VL 0.5[V]/More than VH 2.5[V]
Output current Less than 20mA Less than 20mA Less than 20mA
Rising, decline time Less than 3μs Less than 3μs Less than 0.1μs
Common conditions In case that the cable length of output side is 1[M] and load resistance is less than 1[kΩ]

Mechanical Spec

Starting Torque 300gf – cm Max
Maximum number of revolution 600 rpm
Bearing life time 50,000[hr](In case of rotating by 3000rpm)
Connection Table 4P / 6P
weight 170g

Output Phase Shift

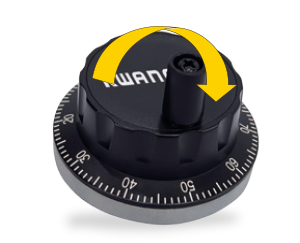

CW → Clockwise viewed from shaft end

a + b, c + d = T/2 ± T/8
a , b , c , d = T/4 ± T/8

Open Collector, Voltage Output, Totem Pole

Line Driver

Rigid Spec

Operating Temp. Range -10°C~ +70°C (No freezing)
Preserving temp -20ºC ~ +85ºC
Using humidity 35% ~ +80% RH
Preserving Humidity 30% ~ +85% RH
Internal Vibratio 5G
Internal Shock 50G
Degree of Protection IP 50

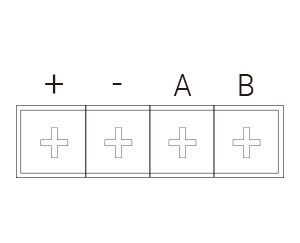

Connection Table

Cable Configuration
Open Collector, Voltage Output Line Driver
List
