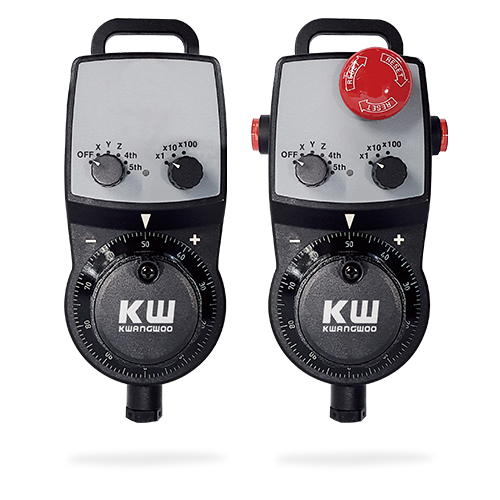

KSPM Series

  • NC tooling machine
  • Industrial application
  • High reliability
  • Customized logo can be available
  • Half permanent durability

Features

NC machine tools, industrial

Realization of high reliability

Custom logo can be attached

Half permanent durability

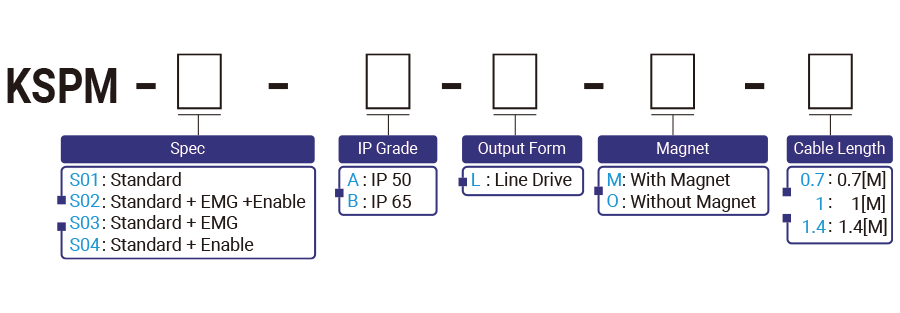

Model

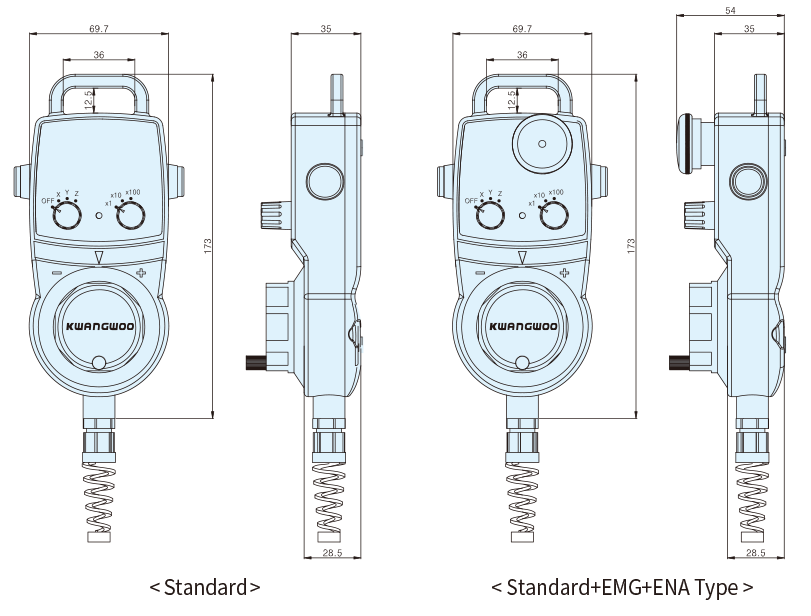

External Dimension

Output Circuit

Line Driver

Specification

Electrical Spec

Output type Line Driver
Power Supply DC +5[v]
Consuming Current
(In case of no load)		 50mA Max
Maximum Response
Frequency		 5KHz MAX
Output voltage Less than VL 0.5[V]/More than VH 2.5[V]
Output current Less than 20mA Multipulation X1, X10, X100 (Rotary Switch)
Rising, decline time Less than 0.1㎲ S/W Function EmergencyS/W
Axis X, Y, Z Enable S/W

Mechanical Spec

Starting Torque 300gf – cm Max
Maximum number of revolution 600 rpm
Bearing lifetime 50,000[hr]
Terminal Block 5268-6(Molex)
Magnet With / Without
Material ABS

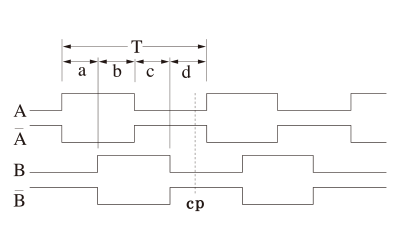

Output Phase Shift

Line Driver

Rigid Spec

Operating Temp. Range -10ºC ~ +70ºC
Preserving temp -20ºC ~ +85ºC
Using humidity 35% ~ +80% RH
Preserving Humidity 30% ~ +85% RH
Internal Vibratio 5G
Internal Shock 50G
Degree of Protection IP 50

Connection Table

No Cable’s Color Signal Relative No Cable’s Color Signal Relative
1 Brown Vcc MPG 11 White MP2 Rotary Switch
(X1, X10, X100)
2 Blue 0V 12 Black MP4
3 Green A 13 Purple COM Enable, Axis
4 Beige 14 Light Red RS1 EMG S/W
5 Orenge B 15 Light Brown RS2
6 Colorless/Black 16 Pink AX1 Axis
(X, Y, Z)
7 Light Green lighting L+ LED Display 17 Blue AX2
8 Light Blue L- 18 Light Green AX4
9 Light Yellow COM EMG S/W 19 Light Purple EN1 Enable SW
10 Gray MP1 Rotary Switch
(X1, X10, X100)		 20 Colorless EN2
< Standard+ EMG + ENA type >
