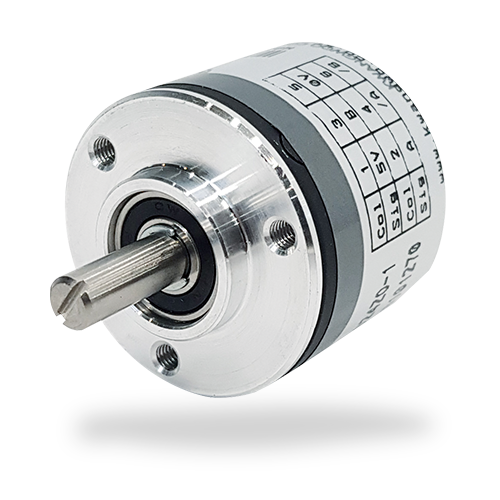

KS30 Series
Out Diameter Ø30mm Shaft type INCREMENTAL
Small size and various resolution
200 ~ 1024 P/R (4 Class)
Wide ranging power voltage
Customized design
Prompt Delivery
200 ~ 1024 P/R (4 Class)
Wide ranging power voltage
Customized design
Prompt Delivery
Features
Small size and various resolution
200 ~ 1024 P/R
(4 Class)
Wide ranging power voltage
Customized design
Prompt Delivery

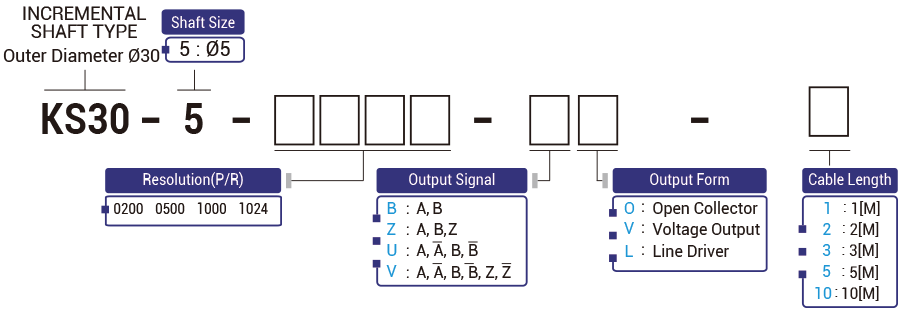

Model

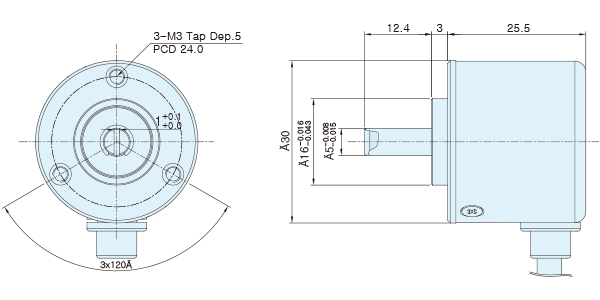

External Dimension
Output Circuit
Open Collector
Voltage Output
Line Driver
Specification
Electrical Spec
| Output type | Open Collector | Voltage Output | Line Driver |
|---|---|---|---|
| Power Supply | DC +5[V] ~ +15[V] Ripplep-p:less than 5% |
DC +5[V] ~ +15[V] Ripplep-p:less than 5% |
DC +5[V] Ripplep-p:less than 5% |
| Consuming Current (In case of no load) |
70mA Max | ||
| Maximum Response Frequency | 150 KHz (200 ~ 1024 P/R) | ||
| Output voltage | Less than VL 0.5[V] / More than VH 2.5[V] (In case of inputting +5[V]), More than VH 10[V] (In case of inputting +15[V]) |
||
| Output current | Less than 20mA | ||
| Rising, decline time | Less than 3㎲ | Less than 3㎲ | Less than 0.1㎲ |
| Common conditions | In case that the cable length of output side is 1[M] and load resistance is less than 1[kΩ] | ||
Mechanical Spec
| Starting Torque | 50gf – cm Max |
|---|---|
| Maximum number of revolution | 3000 rpm |
| Bearing lifetime | 20,000[hr] (In case of rotating by 3000rpm) |
| Allowable Shaft Load | Radial : 1.8kgMax Axial : 0.9kgMax |
| Position deflection of allowable shaft | Radial : Less than 0.05 mm Axial : Less than 0.2mm |
| Connection Table | 4P(AWG26) Shield CABLE |
| weight | 120g |
Output Phase Shift

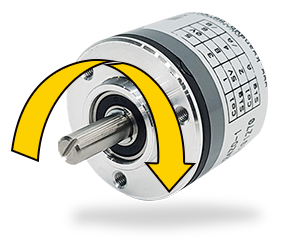

CW → Clockwise viewed from shaft end
a + b, c + d = T/2 ± T/8
a , b , c , d = T/4 ± T/8

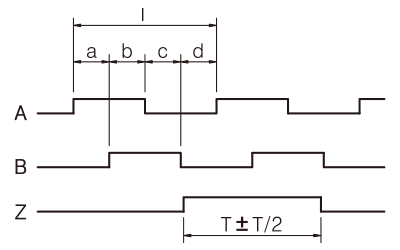

Open Collector, Voltage Output

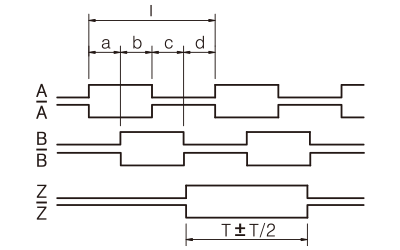

Line Driver
Rigid Spec
| Operating Temp. Range | -10ºC ~ +70ºC (No freezing) |
|---|---|
| Preserving temp | -20ºC ~ +85ºC |
| Using humidity | 35% ~ +85% RH |
| Preserving Humidity | 30% ~ +90% RH |
| Internal Vibratio | 5G |
| Internal Shock | 50G |
| Degree of Protection | IP 50 |
Connection Table
| Cable’s Color | Output Signal | |
|---|---|---|
| Output Form | Open Collector Voltage Output |
Line Driver |
| Red | Vcc | Vcc |
| Black | GND | GND |
| Green | A Sig | A Sig |
| Blue | – |  |
| White | B Sig | B Sig |
| Pink | – |  |
| Yellow | Z Sig | Z Sig |
| Orange | – |  |
| Shield | CASE Shield | CASE Shield |
