K55A1 VMS

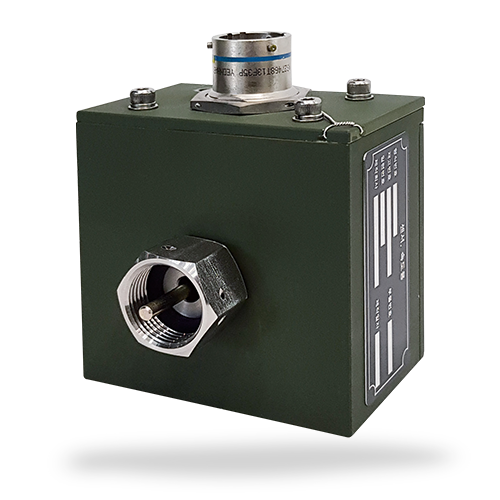

K55A1 Vehicle Motion Sensor
- Rated voltage 5VDC
- BIT signal output (CW/CCW)
- The rotation input of the transmission is converted into a speed
(electric signal) and provided to the inertial navigation device
used as data to calculate the position of the self-propelled howitzer
Features
External Dimension

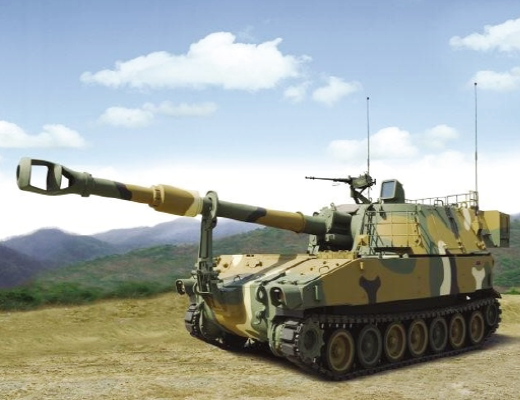

System Application
Specification
| Contents | Spec |
|---|---|
| Size | Less than 81.3 ± 0.3mm, 81.3 ± 0.3mm, 49.5mm |
| Weight | Less than 1.2kg |
| Supply voltage | +5± 0.25Vdc / 2.5W |
| Communication standard | RS-422(TIA / EIA-422) |
| RPM. Max | 1400 RPM |
| Operating Temp. Range | -46ºC ~ +93ºC |
| Resolution | 32 PPR |
| Pulse width | 800±80㎲ec |
| Rotation angle | 11.25 / Pulse |
| Input Signal | BIT Signal (CW/CCW) |
| Test specification | MIL-STD-810G |
| Shaft type | Hollow shaft(MS51072 standard) |
| Connector | MS27468T13F35P |
| Totque | Less than 14.12 mN.m (144 gf.m) |
